Sawmill Servo Positioning & Proportional Valve Repair
Independent third-party rebuild of servo and proportional valves on sawmill setworks, cant positioners, and gang saw feed control. Component-level work and bench verification on the same hydraulic stands the shop has run since 1975.
Where Sawmill Valves Sit
Four sawmill positioning contexts
Sawmill positioning hydraulics live on a handful of equipment families. Below are the four contexts that send the most valves through the bench.
01
Setworks blade height
Proportional valves controlling blade height and log positioning between successive cuts. Often paired with laser scanning and optimization to maximize lumber recovery.
02
Cant positioners
Proportional servovalves rotating cants between cuts on the carriage. Tight positioning keeps board yield high after the first slabs come off.
03
Gang saw feed control
Proportional feed-rate valves holding cutting speed through the cant. Keeps blade life and cut quality where they need to be on McDonough and similar gang lines.
04
Carriage and slewing
Carriage drive valves, log turners, and slewing controls on USNR, Comact, and Hermary lines. Rugged service with sawdust and moisture exposure.
What NC Servo Does
Component-level repair on sawmill valves
Each unit is opened, cleaned, and rebuilt at the component level. Failed parts come from inventory or off donor units. Bench verification before ship.
Spool & sleeve service
Spool wear, contamination scoring, and lap restoration on proportional valve bodies that have run with sawmill fluid.
Coil & LVDT work
Burned coil rebuild, feedback wire repair, and LVDT verification on closed-loop sawmill bodies.
Bench testing
Hydraulic stands run flow, response, hysteresis, and null checks against documented procedures. Performance data on request.
Donor parts pool
19,000+ unit in-house pool. Parts pulled off donors for valves the OEM no longer supports.
Repair scope
Hardware repair only. PLC programming, setworks tuning, and system integration stay with the customer or the sawmill OEM.
Brands
Sawmill valve brands serviced
Top brands seen on sawmill setworks, cant positioning, and gang saw hydraulics. Click through for the dedicated brand page.
Common Faults
What usually shows up on sawmill valves
Sawmill hydraulics deal with sawdust ingress, moisture, and constant cycling. The failures we see most often fall into the categories below.
| Pilot stage | Torque motor coil burnout, nozzle plugging from particulate, and pilot null shift after long runs of cant positioning duty. |
|---|---|
| Spool and body | Spool wear from constant cycling, contamination scoring, sticky spool action, and internal leakage that shows up as drift on the setworks. |
| Feedback and electrical | LVDT signal drift, feedback wire wear at the pilot, and amplifier card faults on Delta RMC and similar motion electronics. |
| Connector and environment | Moisture and sawdust ingress at the connector, cable strain, and corrosion on connector pins after years of mill-floor service. |
Workflow
From part number to ship-back
Same four-step path through the shop whether the unit is a setworks proportional or a gang saw feed valve.
-
01
Get in touch
Call or email with the part number, the sawmill application, and a photo of the nameplate if it helps.
-
02
Bench review
Tech opens the unit, inspects pilot and spool, and runs it on the hydraulic stand to confirm what failed.
-
03
Cost & approval
We call back with the cost and a rough turnaround. Nothing is started without your sign-off.
-
04
Repair, test, ship
Failed components replaced from inventory or off donors, the valve verified under pressure, and shipped back.
FAQ
Common questions about sawmill valve repair
Application-specific questions. For brand-specific FAQs, see the dedicated brand page in the brand list above.
What sawmill valves come through the shop?

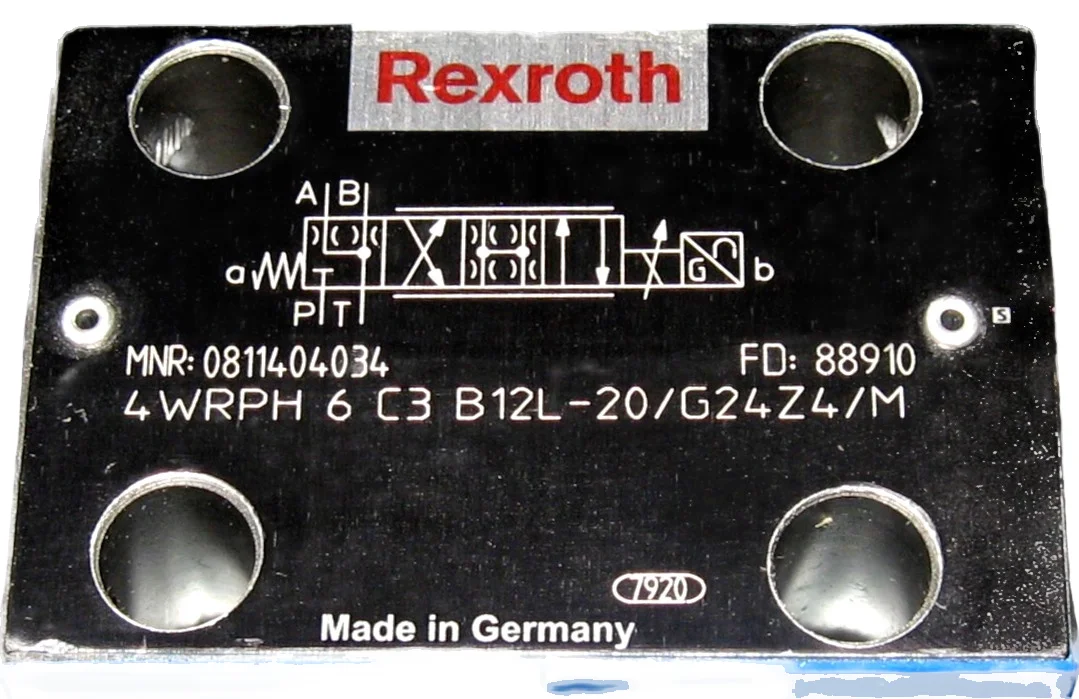

Servo and proportional valves from setworks, cant positioning, and gang saw feed control. Common families include Vickers KBSDG4V, Bosch Rexroth 4WRSE and 4WRPH, Parker D1FP and D3FP, and Moog D633 / D661.
Do you handle older sawmill valves the OEM no longer supports?
Yes. A lot of the bench work is on legacy hardware from sawmill systems built in the 1990s and 2000s. The donor pool keeps obsolete valves repairable when new replacement is no longer an option.
Do you do PLC or setworks programming?
No. The shop handles hardware: valve bodies, spools, seals, torque motors, coils, feedback, and amplifier cards. PLC programming, setworks software, and parameter setup stay with the customer or the sawmill OEM.
Can you repair the motion controller and amplifier cards as well?
Yes for component-level board work. Failed capacitors, IGBTs, gate drivers, power supplies, and LVDT signal conditioning come through the bench. Parameter loading and motion-controller programming do not.
What if my sawmill valve is beyond economic repair?
If the valve is not fixable, we will let you know and help source a replacement.
What is the warranty?
One year on parts and workmanship for repairs and rebuilt units. Standard exclusions apply for contamination, improper installation, and out-of-spec operation. Flushing and filtering the hydraulic system before reinstalling a repaired valve is recommended.
