Pilot stage rebuild
Torque motor, nozzle flapper, and jet-pipe pilot service on Moog D633 / D661 / 72 Series and Rexroth 4WRPH valves.
Hydraulic Press Servo Valve Repair

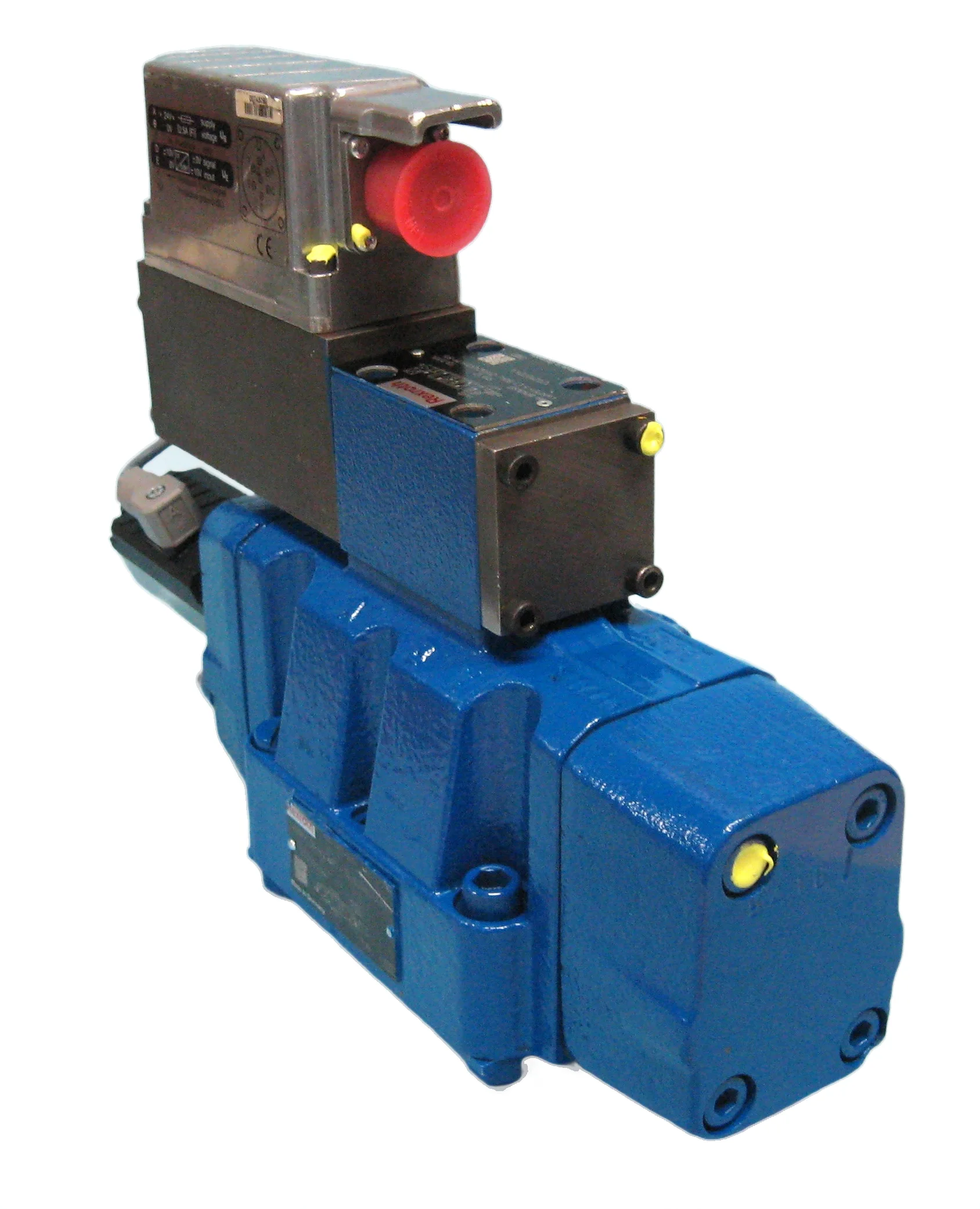

Independent third-party component-level repair of servo and proportional valves on forging, stamping, extrusion, and metal-forming press hydraulics. Rexroth 4WRPH, Moog D633 / D634, and Parker D1FP bodies on automotive stamping, steel mills, and forge shops.
Where These Valves Sit
Four hydraulic-press application contexts
Servo and proportional valves on press hydraulics handle ram velocity, pressing force, and dwell control. Below are the four common contexts seen at the bench.
01
Forging presses
Open-die and closed-die forging presses. High-flow, high-pressure servo bodies on ram and ejection hydraulics.
02
Stamping & deep draw
Automotive stamping, deep-draw, and progressive-die press hydraulics on cushion, ram, and slide-balance loops.
03
Extrusion presses
Aluminum and brass extrusion press hydraulics on ram velocity and main pressure control.
04
Specialty & rolling mill
Roll-bending hydraulics on rolling-mill stands, level-roll positioning, and AGC loops on steel-mill rolling.
What NC Servo Does
Component-level repair on press valves
Each unit is opened, inspected, and rebuilt at the component level. Failed parts come from inventory or off donor units. Bench verification before ship.
Spool & sleeve service
Spool wear, contamination scoring, and lap restoration on press-grade industrial servo and proportional valve bodies.
Coil & feedback work
Burned coil rebuild, feedback wire repair, and LVDT verification on closed-loop bodies common on stamping cushions.
Bench testing
Hagen-Busch and older-style hydraulic stands. Frequency response, hysteresis, and step response data on request.
Donor parts service
19,000+ unit in-house pool. Aftermarket and donor parts for legacy press hardware no longer in OEM stock.
Repair scope
Bench-level component work on the valve hardware. Press commissioning, die-cushion programming, and AGC tuning stay with the customer.
Brands
Press servo valve brands serviced
Top brands on hydraulic press valves. Click through for the dedicated brand page.
Common Faults
What usually shows up on press valves
Hydraulic press servo valves run high-cycle, high-pressure duty. Failures fall into four categories.
| Pilot stage | Torque motor coil burnout, jet-pipe nozzle plugging, flapper damage from contamination, and pilot null shift after long service on press duty. |
|---|---|
| Spool and body | Spool wear, contamination scoring, sticky spool action, and internal leakage. Drives erratic ram velocity and dwell behavior. |
| Coil and feedback | Burned drive coils, feedback wire wear, and LVDT signal drift on closed-loop bodies common on stamping cushions and AGC loops. |
| Connector and electrical | Damaged connectors, vibration-induced cable damage, and contamination on connector pins. |
Workflow
From part number to ship-back
Same four-step path through the shop whether the unit came off an automotive stamping line or a hot-forge press.
- 01
Get in touch
Call or email with the part number, equipment context, and a photo of the nameplate if it helps.
- 02
Bench review
Tech opens the unit, inspects pilot and spool, and runs it on the hydraulic stand to confirm what failed.
- 03
Cost & approval
We call back with the cost and a rough turnaround. Nothing is started without your sign-off.
- 04
Repair, test, ship
Failed components replaced from inventory or off donors, the valve verified under pressure, and shipped back.
FAQ
Common questions about press valve repair
Application-specific questions. For brand-specific FAQs, see the dedicated brand page above.
What types of press servo valves do you repair?
Servo and proportional valves on hydraulic press hydraulics: Rexroth 4WRPH, Moog D633 / D634 / D661 / 72 Series, Parker D1FP, Vickers, Atos, and Yuken. Coverage spans forging, stamping, extrusion, and rolling-mill applications.
What press builders come through the bench?
Valves come through from Schuler, SMS, Komatsu, Aida, Bliss, Verson, Cincinnati, Loewy, and other press OEMs across automotive stamping, forging, and metal forming.
Can you repair valves from older presses no longer supported?
Yes. Discontinued bodies from older Verson, Bliss, and SMS presses come through routinely. The 19,000+ unit donor pool covers a lot of legacy press hardware.
Do you provide press commissioning or AGC tuning?
No. Hardware repair only. Press commissioning, die-cushion parameter setup, and AGC tuning stay with the customer or integrator.
Do you provide on-site service?
No. Bench repair is the standard service: ship the valve to Westland, MI for rebuild and testing.
How long does a repair usually take?
Lead time varies job to job, partly because parts are often pulled from donor boards. Give us a call with the part number and the situation.
What is the warranty?
One year on parts and workmanship for repairs and rebuilt units. Standard exclusions apply for contamination, improper installation, and out-of-spec operation. Flushing the hydraulic system before reinstalling a repaired valve is recommended.
More from NC Servo
Related repair coverage
The hubs and brand pages most-tied to hydraulic press valves.
Valve repair hub
Full directory of 20+ valve brands with dedicated pages.
Industrial valves
Cross-industry industrial valve repair coverage.
Hydraulic services
Combined valve and drive repair coverage.
Bosch Rexroth
Rexroth 4WRPH, 4WRSE, and broader Rexroth coverage.
Moog brand page
Moog D633, D634, D661, and 72 Series.
Parker brand page
Parker D1FP servo-proportional valves on industrial presses.
What is a servo valve?
Plain-English explainer on what's inside an electrohydraulic servo valve and why these units come in for repair.
Servo valve failure causes
Contamination, hardened seals, blown coils, and the most common reasons servo valves fail in industrial service.
Press down? Send a part number
Give us a call or send a part number with the equipment context and the symptom. We'll check the donor pool, suggest a rebuilt match if we have one, and walk through repair or cross-brand options if we don't.
