Independent third-party repair of high-flow servo and proportional valves on tunnel boring machines: cutter head torque control, main thrust, and articulation hydraulics on Herrenknecht, Robbins, CREC, Komatsu, Hitachi Zosen, and NFM equipment.
TBM hydraulics run high-flow servo and proportional control valves on dedicated control loops, not on modular sectional valve stacks. Below are the four common contexts seen at the bench.
N110
Cutter head torque
High-flow servo valves regulating cutter head drive torque under variable rock and soil loading. Moog and Rexroth 4WRPH bodies common on these loops.
N120
Main thrust control
Servo and proportional valves driving thrust cylinders that push the TBM forward against tunnel face. High-pressure, high-flow service.
N130
Articulation & steering
Proportional valves for shield articulation and steering correction in EPB and slurry shield TBMs. Demanding closed-loop position control.
N140
Backup & segment erector
Hydraulic valves on segment erectors, conveyor drives, and backup hydraulics. Mix of servo, proportional, and standard directional control.
Each unit is opened, inspected, and rebuilt at the component level. Failed parts come from inventory or pulled off donor units. Bench verification before ship.
N210
Pilot stage rebuild
Torque-motor pilot stages, nozzle flapper assemblies, and pilot-pressure trim cleaned and aligned against documented procedures.
N220
Spool & sleeve service
Spool wear, contamination scoring, and lap restoration on high-flow valve bodies. Ground-water grit and tunnel debris are common contaminants.
N230
Coil & feedback work
Burned coil rebuild, feedback wire repair, and LVDT verification on closed-loop bodies used on cutter head and thrust loops.
N240
Bench testing
Hagenbusch and older-style hydraulic stands for high-flow valve verification. Performance data available for purchase.
N250
Donor parts service
19,000+ unit in-house pool. Aftermarket and donor parts for legacy TBM control valves no longer supported by the OEM.
N260
Repair scope
Bench-level component work on the valve hardware. Tunnel-project commissioning and TBM integrator sign-off stay with the customer.
TBM hydraulics live in dirty, vibration-heavy environments. Tunnel water and grit eventually pass through filtration. The failures we see most often fall into the categories below. Recognize one? A part number is enough to start.
Torque-motor pilot drift, nozzle plugging from tunnel grit, and null shift after long boring runs. Drives erratic cutter head torque or thrust response.
Spool and body
Spool wear, scoring on lap surfaces from contamination, sticky spool action, and internal leakage. Common on cutter head loops where flow rates are high.
Coil and feedback
Burned drive coils after surge events, feedback wire wear from vibration, and LVDT signal drift on closed-loop thrust valves.
Connector and electrical
Damaged connectors, water ingress at connectors, cable strain from machine articulation, and contamination on connector pins.
N500 Workflow
From part number to ship-back
Same four-step path through the shop whether the unit came off a Herrenknecht slurry TBM or a Robbins hard-rock machine.
N510
Get in touch
Call or email with the part number, equipment make, and a photo of the nameplate if it helps.
N520
Bench review
Tech opens the unit, inspects pilot and spool, and runs it on the hydraulic stand to confirm what failed.
N530
Cost & approval
We call back with the cost and a rough turnaround. Nothing is started without your sign-off.
N540
Repair, test, ship
Failed components replaced from inventory or off donors, the valve verified under pressure, and shipped back.
N600 Common questions
Common questions about TBM valve repair
Application-specific questions. For brand-specific FAQs, see the dedicated brand page in the brand list above.
What types of TBM servo valves do you repair?

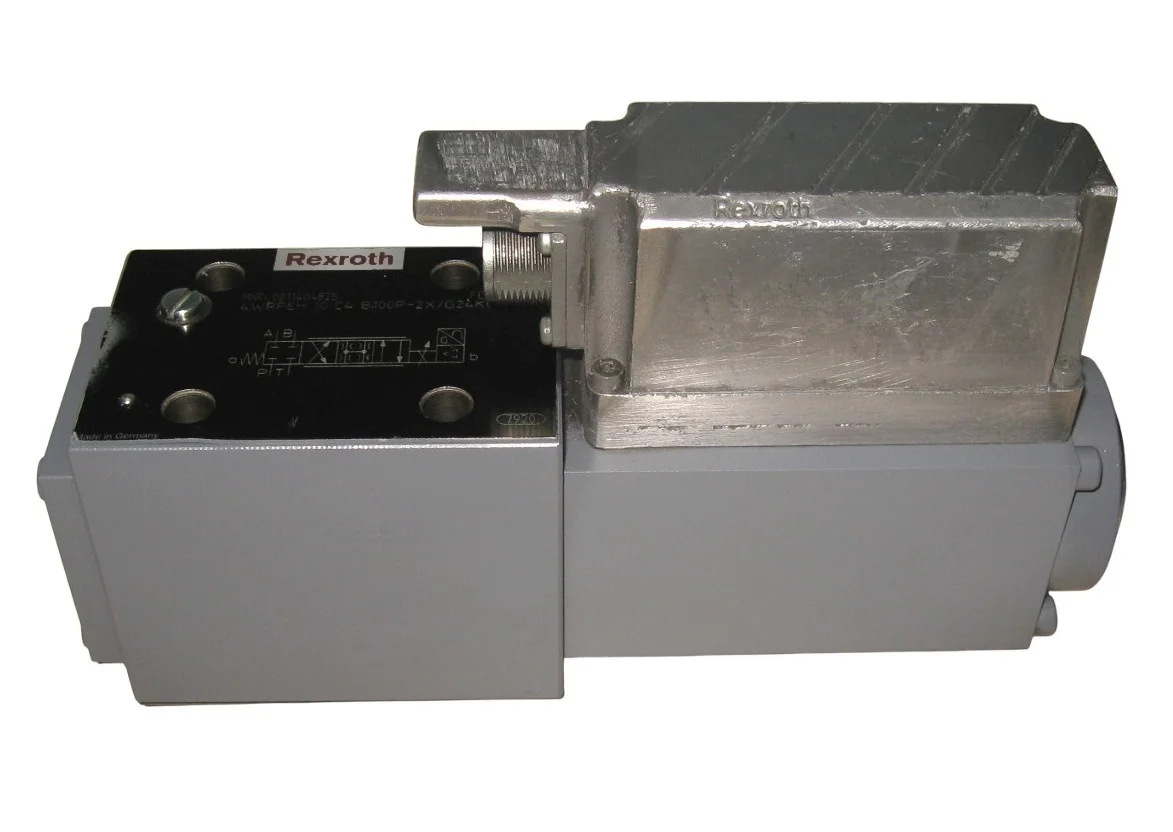

High-flow servo and proportional valves used in TBM hydraulic control: Moog high-flow servo bodies, Rexroth 4WRPH and 4WRPEH proportional valves, and Parker high-flow proportional valves. These are standalone electro-hydraulic valves on dedicated control loops, not the modular sectional valve banks that handle main directional control on the machine.
What TBM manufacturers do you service valves for?
Servo and proportional valves from TBM hydraulics come through the bench. Bodies are commercial Moog, Rexroth, and Parker — we repair by valve manufacturer, not by machine builder. NC Servo is not affiliated with any TBM OEM.
Do you repair cutter head torque control valves?
Yes. Cutter head torque loops typically use high-flow servo valves (Moog or Rexroth 4WRPH). Pilot stage cleaning, spool and sleeve service, coil rebuild, and bench verification all come through the shop.
Can you repair valves from older TBMs no longer supported?
Yes. Discontinued high-flow servo bodies from older Herrenknecht and Robbins machines are common at the bench. The 19,000+ unit donor pool covers a lot of legacy TBM hardware that the OEM has dropped from current support.
How long does a repair usually take?
Lead time varies job to job, partly because parts are often pulled from donor boards. Give us a call with the part number and the situation.
Do you do field service on TBM hydraulics?
Bench repair is the standard service - ship the valve to us for rebuild and testing. Field service can be arranged for on-site needs but is not the typical offering.
What is the warranty?
One year on parts and workmanship for repairs and rebuilt units. Standard exclusions apply for contamination, improper installation, and out-of-spec operation. Flushing and filtering the hydraulic system before reinstalling a repaired valve is recommended, especially on TBM systems with high grit loading.
N700 More from NC Servo
Related repair coverage
Other industry-specific pages, the broader category hubs, and the brand pages most-tied to TBM hydraulics.
Give us a call or send a part number with the equipment make and the symptom. We'll check the donor pool, suggest a rebuilt match if we have one, and walk through repair or cross-brand options if we don't.
