Third-Party Repair of Vickers Valves & BRD Servo Drives

Independent third-party repair of Vickers and Eaton-Vickers hardware: KBSDG4V and KBFDG4V proportional valves, SM4-series servo valves, BRD-4S and BRM-4S servo drives, BRM-P2 power supplies, and EEA-PAM electronic control modules. Coverage spans Vickers, Trinova-era, and current Eaton labels. Backed by a 19,000+ unit in-house inventory we pull aftermarket and donor parts from. NC Servo is not affiliated with Eaton or Vickers. Working on this kind of hardware since 1975.

Both valves and drives Vickers KBSDG4V / SM4 hydraulics and BRD-4S / BRM-P2 electronics under one roof.
Three-era coverage Vickers, Trinova-era, and Eaton-Vickers hardware all serviced on the same bench.
One-year warranty Standard on parts and workmanship for Vickers repairs and rebuilt units.

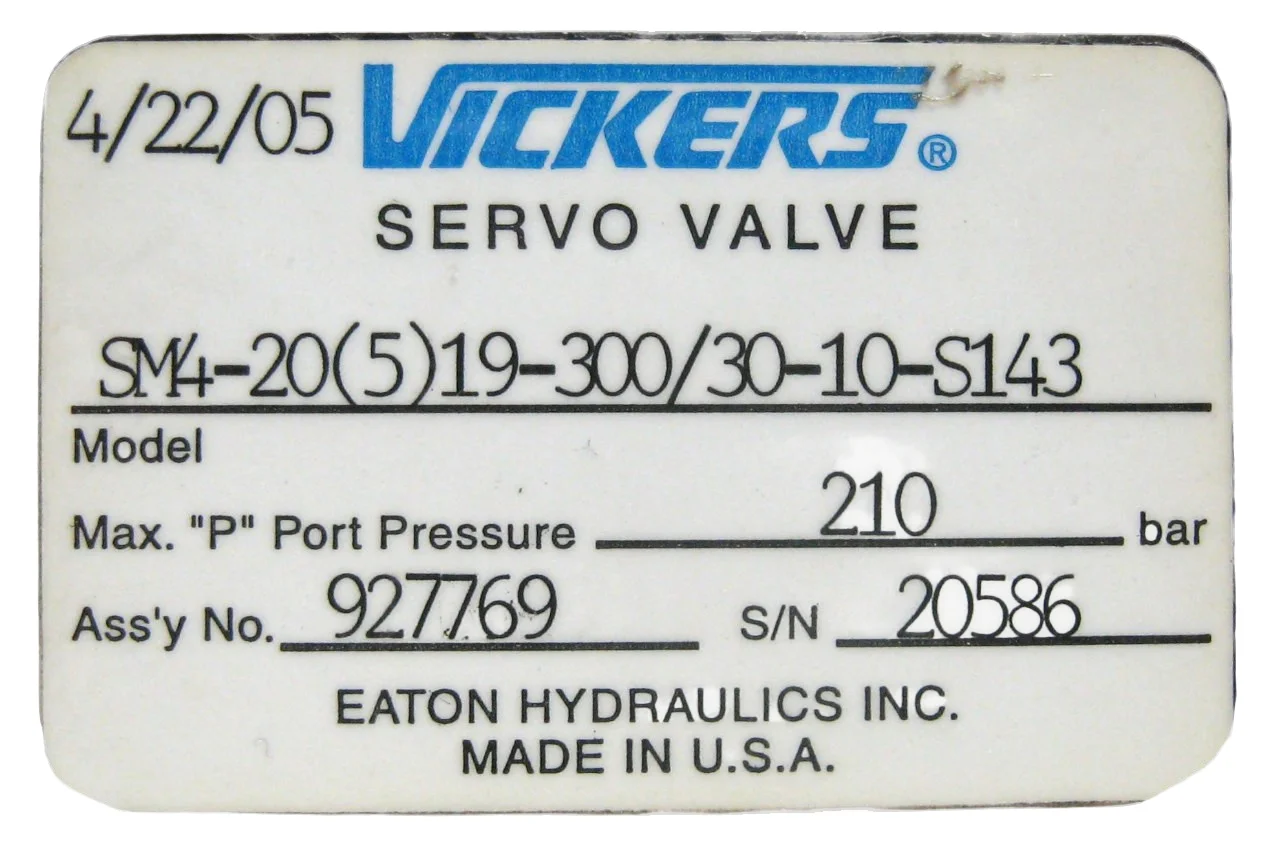

Vickers SM4 servo valve nameplate showing Eaton Hydraulics Inc., made in USA branding

Brand Lineage

Vickers, then Trinova, then Aeroquip-Vickers, then Eaton

Vickers has been through a longer ownership chain than most hydraulic brands. The valve in your machine is probably wearing the label from whichever era it left the factory. We work on hardware from all of them.

Pre-1985
Vickers Inc. Long-running American hydraulics maker. Servo valves, proportional valves, and pumps shipped under the original Vickers name.
1985
Trinova acquires Vickers Vickers becomes part of Trinova Corporation. BRM-4S-B10 and other drive electronics from this period carry Vickers-Trinova labels.
1999
Eaton acquires Aeroquip-Vickers Eaton folds Vickers into its hydraulics business. Hardware after this point carries Eaton-Vickers branding, and newer SM4 servo valves carry "Eaton Hydraulics Inc." nameplates.
Today
Eaton, with Vickers still on the label The Vickers name persists on continuing valve and drive lines. KBSDG4V proportional valves and BRD-4S servo drives are still spec'd in by name on industrial hydraulics.

Service Coverage

What NC Servo does with Vickers hardware

Vickers is one of the few hydraulic brands that ships both valves and the drive electronics that go with them. Both sides come through the shop. Each unit is opened, inspected, and rebuilt at the component level using parts from inventory or pulled off donor units.

Servo valves (SM4)

SM4-series electrohydraulic servo valves like SM4-20(5)19-300/30-10-S143. Pilot stage cleaning and trim, spool service, coil rebuild, seal replacement, and bench testing on the hydraulic stand.

Proportional valves (KBSDG4V / KBFDG4V)

KBSDG4V and KBFDG4V proportional directional control valves with onboard driver electronics. Coil work, spool service, driver-card rebuild, and full functional verification at rated pressure.

Drive electronics (BRD / BRM / EEA-PAM)

BRD-4S servo drives, BRM-P2 power supplies, BRM-4S-B10 Trinova-era drives, and EEA-PAM-535-C-32 control modules. Component-level board work, signal verification, and load testing on the electronics bench.

Vickers Models

Vickers part numbers commonly through the door

We are a small repair shop, not a Vickers or Eaton distributor. The part numbers below are simply the ones that come through often enough to be familiar. If your number is not on this list, send it anyway. We work on what we can.

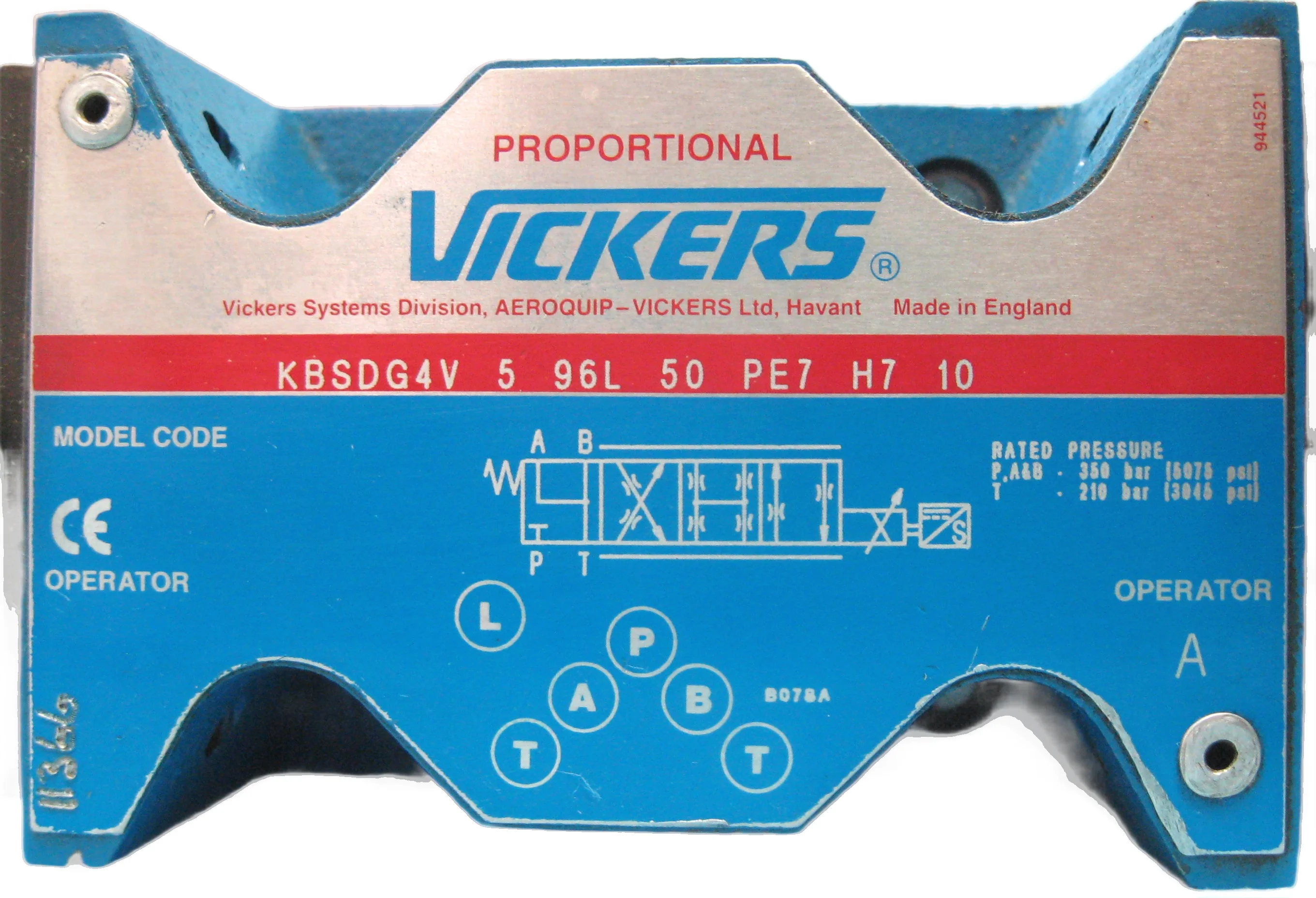

KBSDG4V series Proportional directional control valves with onboard driver. Examples: KBSDG4V596L50PE7H710 with A, B, P, T ports rated to 350 bar.
KBFDG4V series Proportional valves in the same family. Examples: KBFDG4V59C50NZPC7H710 with CE marking and connector-mounted driver.
SM4 series Two-stage electrohydraulic servo valves. Examples: SM4-20(5)19-300/30-10-S143 with 210 bar port pressure, Eaton Hydraulics labels.
BRD / BRM / EEA-PAM BRD-4S servo drives, BRM-P2 power supplies, BRM-4S-B10 Trinova drives, and EEA-PAM-535-C-32 modules.

Drive Electronics Deep-Dive

BRD-4S, BRM-P2, and the rest of the Vickers electronics rack

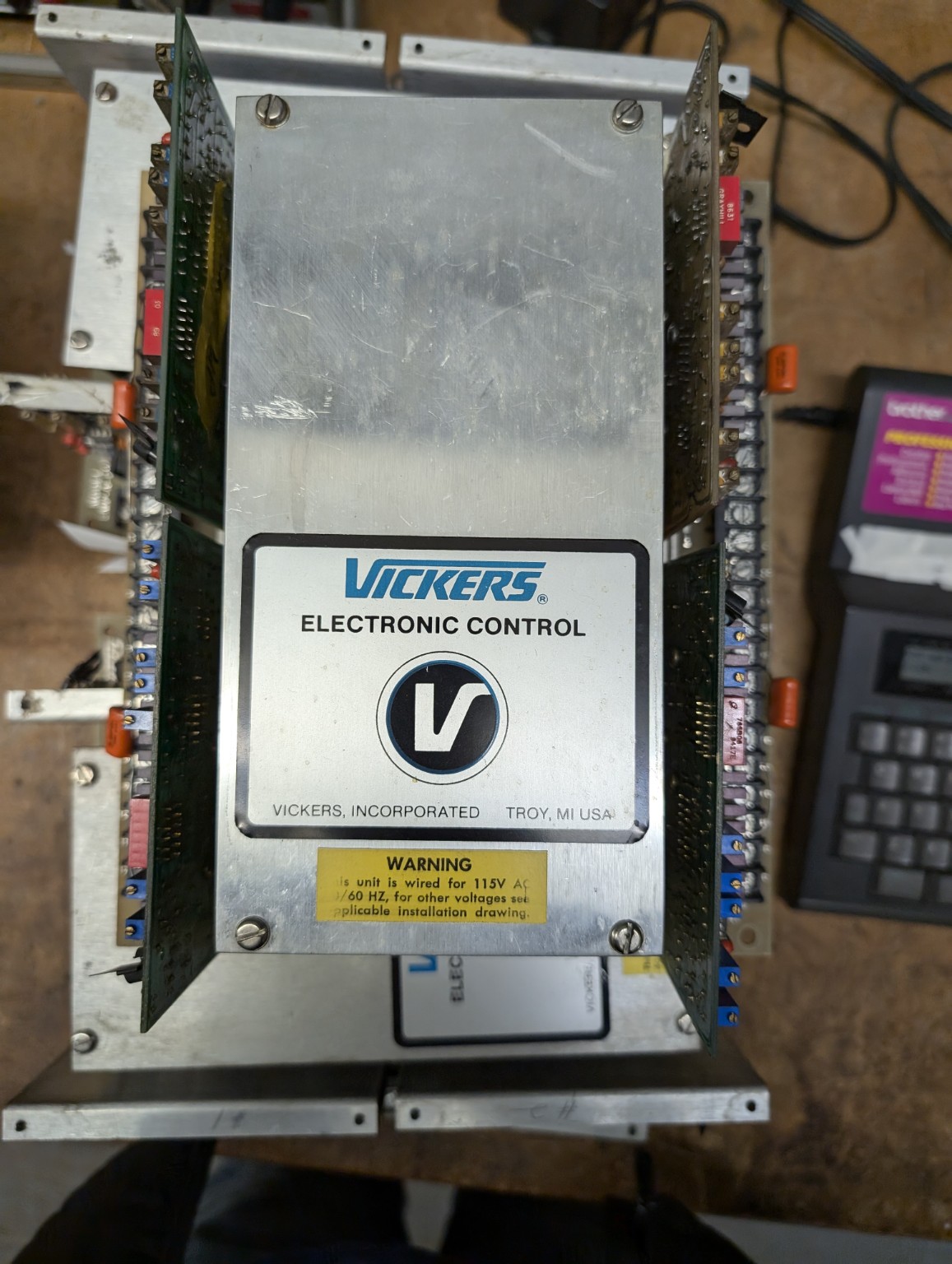

Vickers shipped a full electronics rack alongside its hydraulics: power supplies, servo drives, and control modules that sat in the cabinet next to the valve manifold. Most other hydraulic brands left that side to a separate motion-controls supplier. The cards below are the ones we open most often.

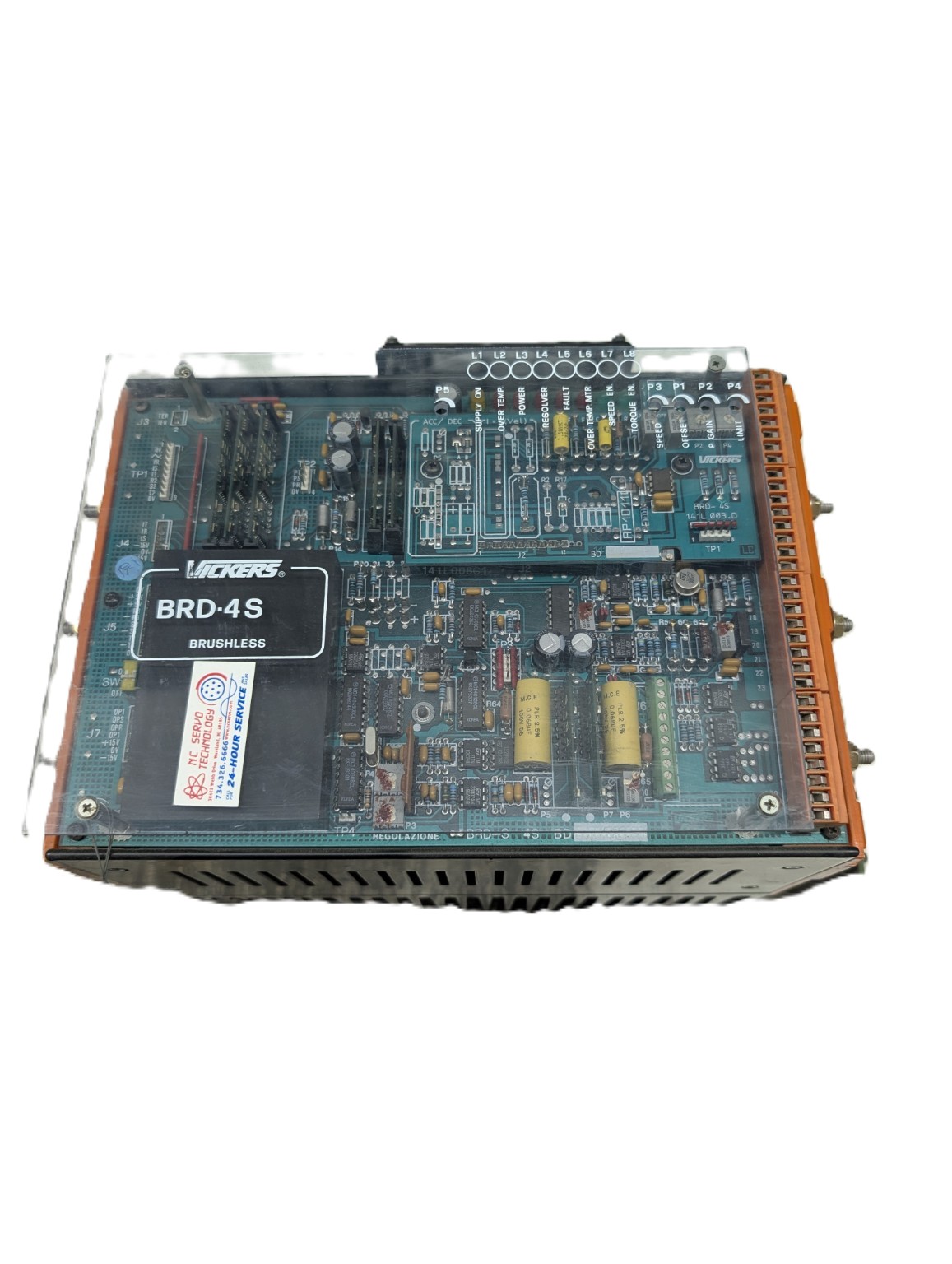

Vickers BRD-4S servo drive front view with circuit board, nameplate, and orange terminal strip
BRD-4S servo driveDensely populated card with dedicated chips, copper heat sink, ventilated side panel, and orange terminal strip. Component-level board work; we replace failed power stages and signal-path components.

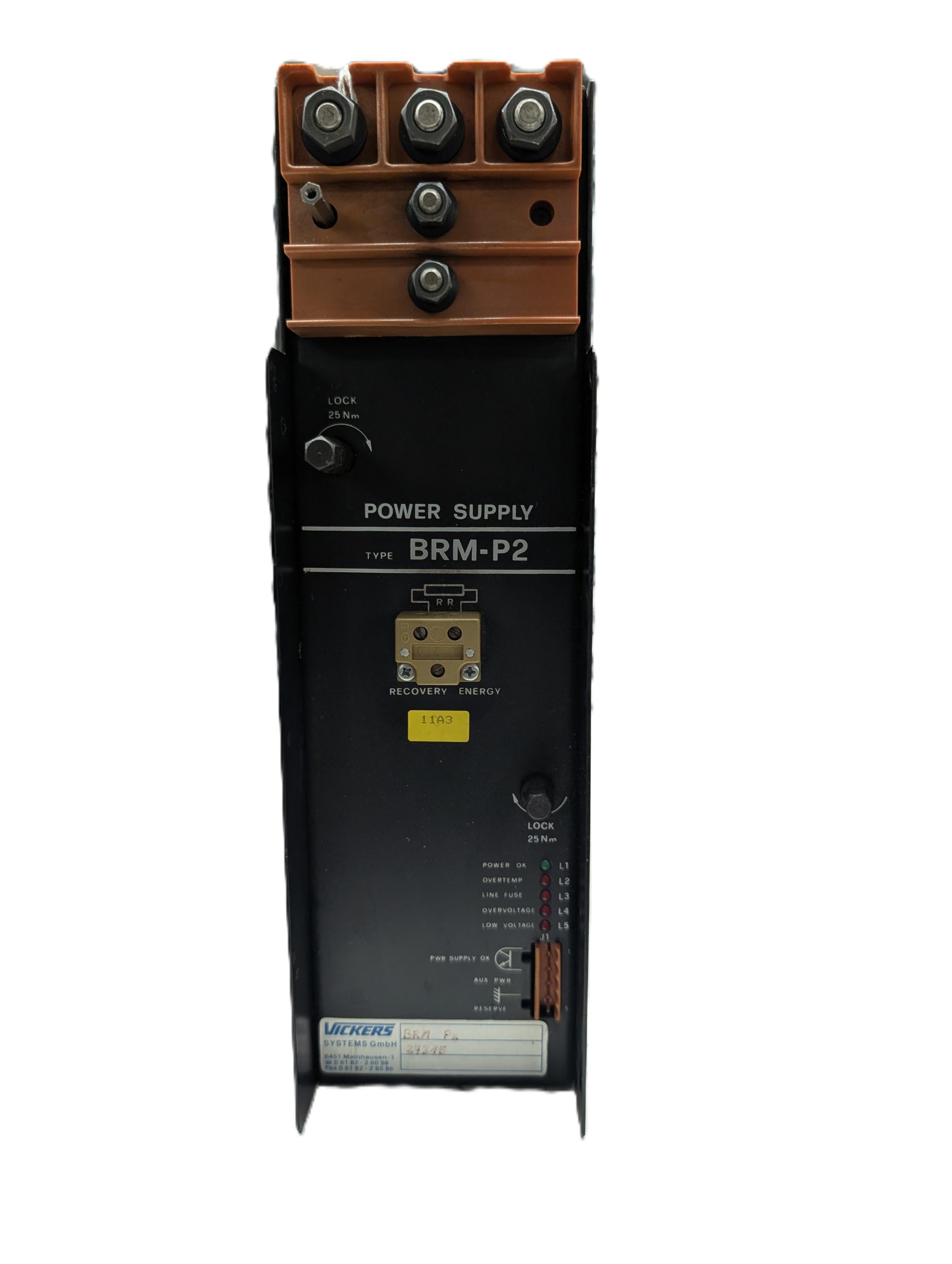

Vickers BRM-P2 power supply front panel with status indicators, gold recovery connector, and copper bus bar terminal block
BRM-P2 power supplyStatus indicators (Power On, Overvoltage, Line Fuse, Par Supply On, Bus Pwr), copper bus bar, and orange multi-pin connector. We rebuild blown fuses, regulator stages, and supply protection circuits.

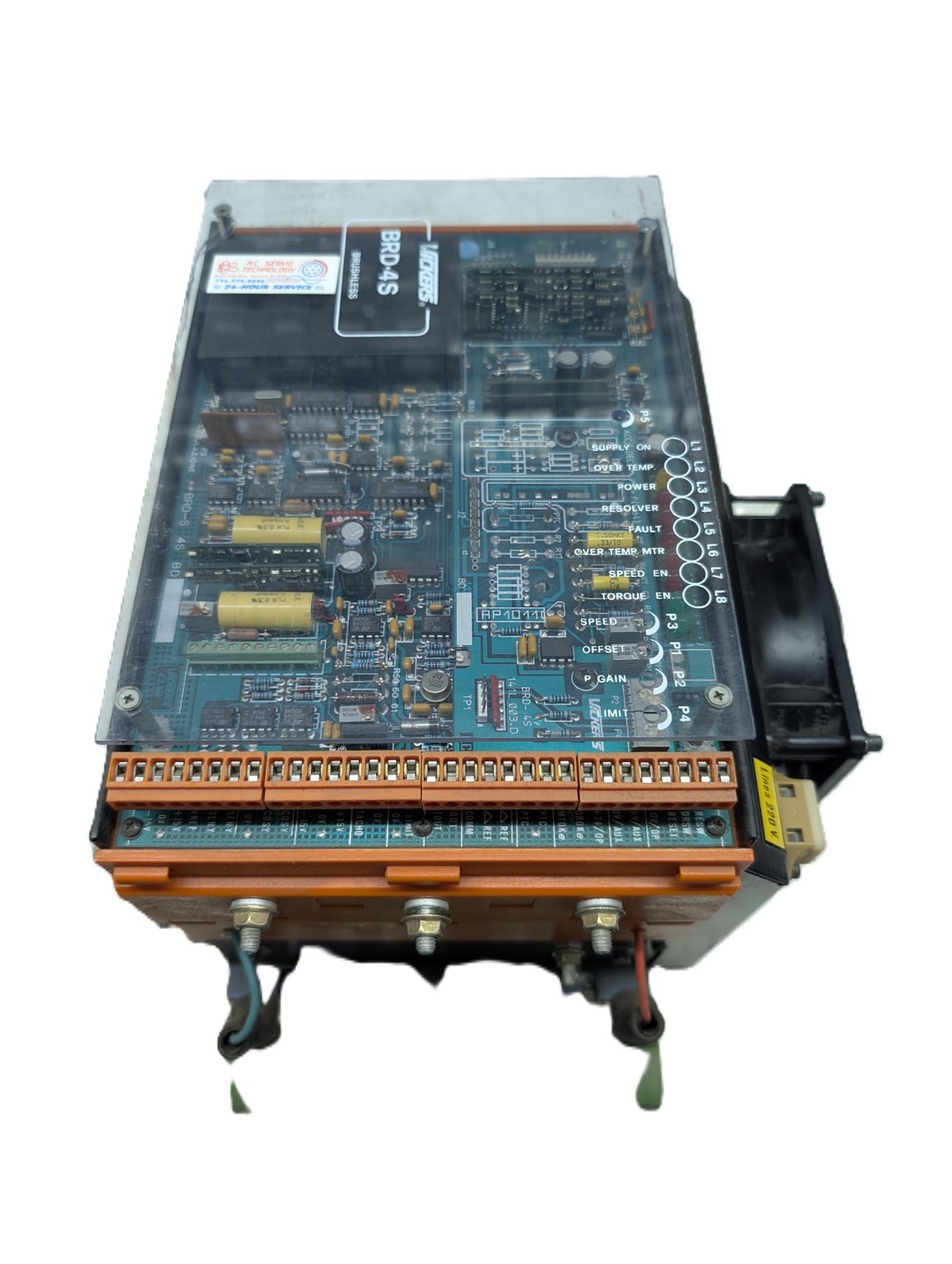

Vickers BRD-4S servo drive top-down view with circuit board under clear protective cover and numbered terminal connections
EEA-PAM and BRM-4S-B10EEA-PAM-535-C-32 control modules and BRM-4S-B10 Trinova-era drives sit on the same bench. We test under load with proper signal verification and replace failed components on the board.

Common Faults

What usually shows up on a Vickers repair

A description of the symptom helps the diagnosis, but a part number is often enough. The categories below cover the kinds of trouble that come in across Vickers valves and drive electronics.

SM4 servo valves Pilot-pressure null shift, flapper damage, contamination in the pilot path, feedback wire wear, or burned coils on the pilot stage.
KBSDG4V / KBFDG4V proportional Spool wear, contamination scoring, sticky spool action, internal leakage past the spool, and onboard driver-card faults like blown output stages.
BRD / BRM drive electronics Failed power supply stages, blown bus capacitors, IGBT module failure, signal-conditioning drift, or overvoltage trips that need protection-circuit work.
EEA-PAM control modules Blown output transistors, failed voltage regulators, capacitor failure on the supply rails, and discrete-component failures across the signal path.

Repair Path

From part number to ship-back

Most Vickers jobs follow the same four steps. Lead time varies because some repairs need parts pulled off a donor unit or a card pulled off the electronics bench, so we only commit to timing once a tech has the unit in hand.

Get in touch

Phone or email with whatever you have on the unit: a Vickers, Eaton-Vickers, or Vickers-Trinova part number, a serial number, or a photo of the nameplate.

Bench review

Once the unit arrives, a tech opens it, inspects internals or board condition, and runs it on the hydraulic stand or electronics bench to confirm what failed.

Cost & approval

We call back with the cost and a rough turnaround. Nothing happens without your sign-off.

Repair, test, ship

Failed components are replaced from inventory or off donors, the unit is verified under pressure or load, and it ships back.

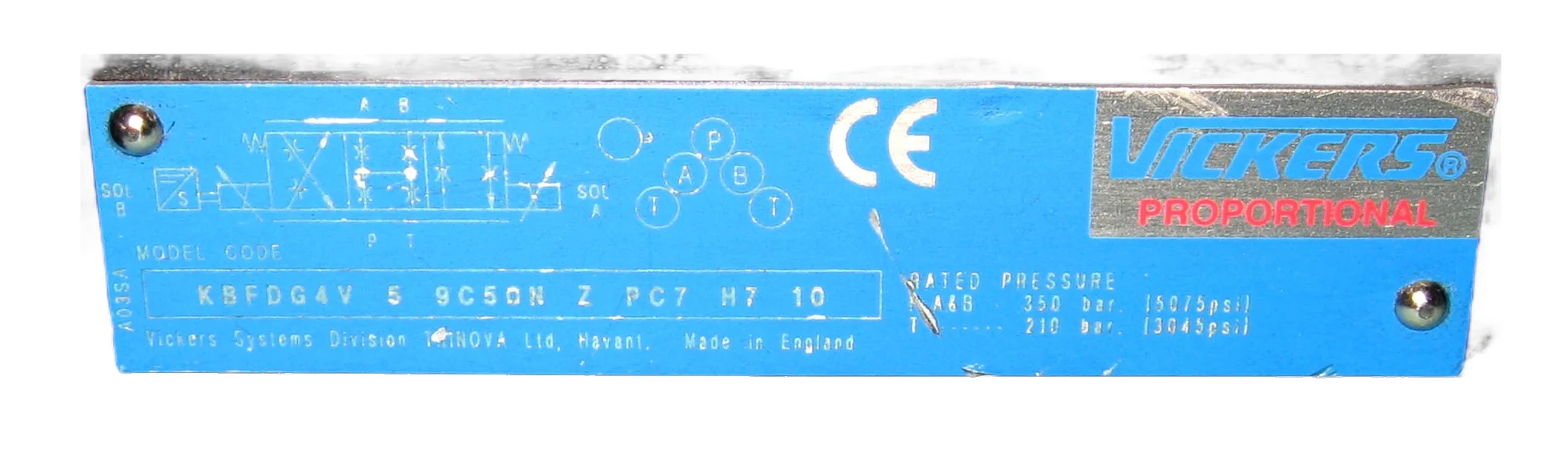

Vickers KBFDG4V59C50NZPC7H710 proportional valve detail showing model code, rated pressure, and CE marking

Bench Verification

Each Vickers unit gets verified before ship

Repaired Vickers valves are checked on the hydraulic test stands. BRD, BRM, and EEA-PAM electronics are tested under load on the electronics bench. Flow, pressure gain, response, null, and signal output are all verified against documented procedures for the family.

  • Flow characterization across the operating range for KBSDG4V, KBFDG4V, and SM4 valves.
  • Pressure gain and step-response measurement against documented procedures.
  • Internal and external leakage checked after seal and spool work.
  • BRD / BRM drive electronics bench-tested under load with proper signal verification.

Inventory & Parts Pool

A 19,000+ unit pool with Vickers hardware in it

NC Servo's in-house inventory holds over 19,000 valves and drives accumulated since 1975, including a steady share of Vickers, Eaton-Vickers, and Trinova-era hardware. That pool is where the shop pulls aftermarket parts and donor components for SM4 servo valves, KBSDG4V proportional bodies, and discontinued BRD / BRM drive cards.

  • Aftermarket and donor parts for KBSDG4V, KBFDG4V, SM4, BRD, BRM, and EEA-PAM hardware.
  • If we have a rebuilt Vickers match for your part number, trade in your old unit for a discount on the rebuilt.
  • No match on the shelf? We can suggest a comparable Vickers, Eaton, or cross-brand option, or repair yours.
  • Rebuilt valves and drives carry the same 1-year warranty as a fresh repair.
Organized warehouse shelves with hydraulic valves and components at NC Servo Technology

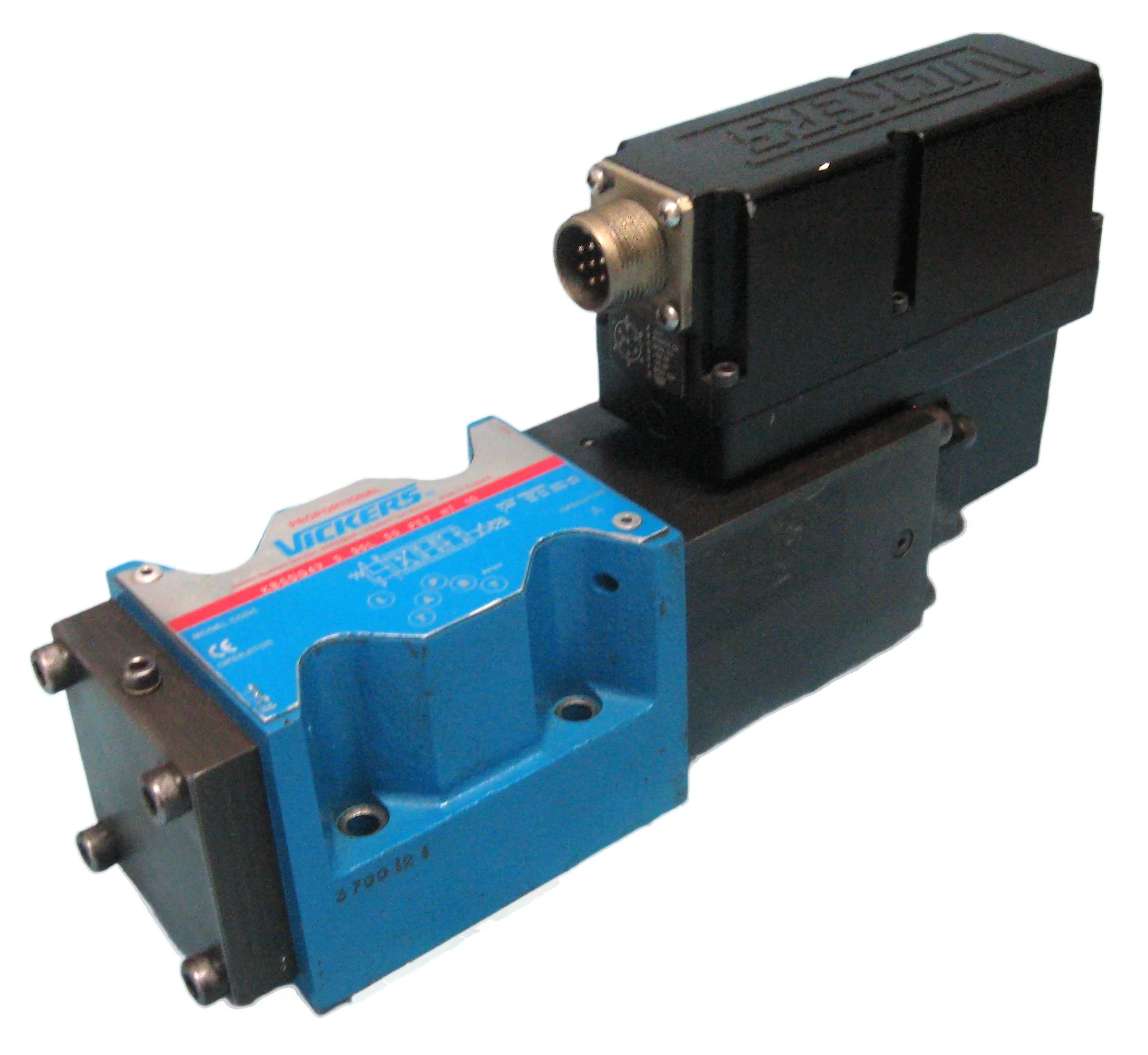

Vickers KBSDG4V596L50PE7H710 proportional valve with multiple mounting points and black connector housing

Repair Scope

Where the line is on a Vickers repair

NC Servo works on the valve and drive hardware itself: the body, spool, pilot stage, coils, board components, power stages, and connectors. Hydraulic system design, fluid selection, drive parameter setup, and getting the unit back on the machine stay with your team or your installer.

  • Internal valve work: spool service, seal replacement, pilot stage cleaning, coil rebuild.
  • Drive electronics work: component-level board repair, power stage rebuild, supply protection.
  • System pressure setup, schematic decisions, and drive parameter configuration remain on your side.
  • Putting the unit back on the machine follows your normal startup process.

Vickers valve or BRD drive down?

Give us a call with the part number, even if the label says Vickers, Eaton-Vickers, Vickers-Trinova, or Eaton Hydraulics. We will check the shelf, and if we have a rebuilt match you can swap your old one for a discount. If we do not, we can suggest a comparable unit or repair the one you have.

Give Us a Call

FAQ

Common questions about Vickers repair

A few things customers ask before sending a unit in. Anything not covered, give us a call at 734-326-6666.

Is NC Servo affiliated with Eaton, Vickers, or Eaton-Vickers?

No. NC Servo Technology is an independent, third-party repair facility and is not affiliated with, authorized by, or endorsed by Eaton Corporation, Vickers, Eaton Hydraulics, Eaton-Vickers, or any related entities. All Vickers and Eaton trademarks are the property of their respective owners.

Do you service Vickers, Eaton-Vickers, and Trinova-era hardware?

Yes. Vickers passed through Trinova in the 1980s and was acquired by Eaton in 1999. Hardware shipped before, during, and after carries different labels (Vickers, Vickers-Trinova, Eaton-Vickers, or just Eaton) but the internals are largely the same family. We work on units from all three eras.

Which Vickers valve and drive models do you cover?

On the valve side: KBSDG4V and KBFDG4V proportional valves and SM4-series servo valves, including units like KBSDG4V596L50PE7H710 and SM4-20(5)19-300/30-10-S143. On the drive side: BRD-4S servo drives, BRM-P2 power supplies, BRM-4S-B10 Trinova-era drives, and EEA-PAM-535-C-32 electronic control modules. Send a part number to confirm coverage on anything not listed.

Can NC Servo recover programs from a failed Vickers BRD or EEA-PAM drive?

Most failures are hardware, and the unit comes back working with its program intact. Corrupted programs are rare; if one is already corrupted before the unit reaches us, that's the one thing we can't recover.

How long does a Vickers repair take?

It varies. NC Servo is a small independent shop, and lead time depends on the unit, what is wrong with it, and whether parts have to come off a donor. Give us a call once the valve or drive ships in, and we can give a current estimate after a tech has looked at it.

What if the Vickers unit is beyond economic repair?

If the valve or drive is not fixable, we will let you know and help source a replacement: a rebuilt match if we have one on the shelf, or a comparable Vickers, Eaton-Vickers, or cross-brand alternative.

What is the warranty on a Vickers repair?

One year on parts and workmanship for repairs and rebuilt units. Standard exclusions apply for contamination, improper installation, and out-of-spec operation. For valves, flushing and filtering the hydraulic system before reinstall is recommended. For drives, verifying line voltage and supply protection before powering up is recommended.

NC Servo Technology is an independent, third-party repair facility and is not affiliated with, authorized by, or endorsed by Eaton Corporation, Vickers, Eaton Hydraulics, Eaton-Vickers, Vickers-Trinova, or any related entities. Vickers, Eaton, Eaton-Vickers, KBSDG4V, KBFDG4V, SM4, BRD-4S, BRM-P2, BRM-4S, EEA-PAM, and all other brand names, model numbers, and trademarks referenced on this page are the property of their respective owners and are used solely to identify equipment serviced by NC Servo Technology. Final installation, system commissioning, and operational compliance remain the responsibility of the customer, OEM, or qualified integrator.
